Phosphor Copper RJ45 Ethernet Jack Compliant With IEEE 802.3 Standard
Specifications
| Electrical | | Mechanical | |
| Current rating: | 1 - 1.5A | Insertion force: | 2 contacts---350g |
| Voltage rating: | 120 - 150V AC | | 4 contacts---500g |
| Insulation resistance: | 500MΩ Min | | 6 contacts---750g |
| Withstand voltage: | AC 1500Vrms 50Hz or 60Hz 1 Min | | 8 contacts---900g |
| Contact resistance: | 20mΩ Max | | 10 contacts---1050g |
| PoE rating: | 15W, 350mA, 84V (For PoE product only) | Retention strength: | 7.7Kg between jack and plug |
| | | Durability: | 750 mating cycles mini |
| Material | | | |
| Housing: | 1) glass filled PA66(ul 94v-0) |
| | 2) glass filled PA46(ul 94v-0) |
| | 3) glass filled PBT(ul 94v-0) |
| Spring wire: | 1) 0.45mm dia phosphor bronze gold plating over nickel |
| | 2) 0.35mm thickness phosphor bronze alloy |
| | selective gold plating over nickel |
| Shielding: | 0.2mm thickness copper alloy with tin plated |
| Gold plating: | 3μ″,6μ″,15μ″,30μ″,50μ″ |
| Working temperature: | -20℃-70℃, -40℃-85℃ | | |
| Relative humidity: | 70%±10% RH | |
Eceatrical
1.voltage Rating:125 vac
2.Insnlation Resistance:500M min
3.Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min
Mechanical
1.Operating:750 cycles min
Materical
1.Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2.Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch
Environmental
1.Working Temeperature:-20℃to 75℃
2.Storage Temeperature:-45℃to 85℃
Mates with modular plug conforming to FCC part 68,subpart F.
Electrical Specifications:
1. Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec
Lead-free process,compliant RoHS

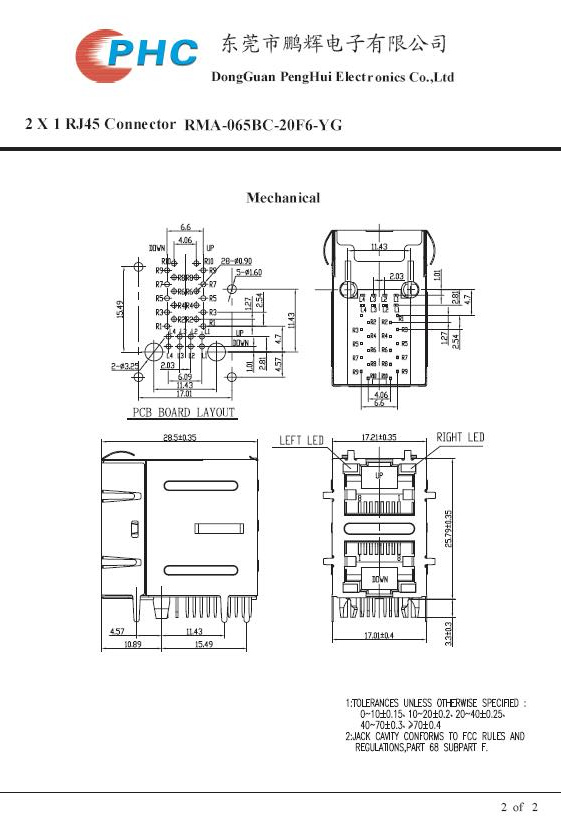

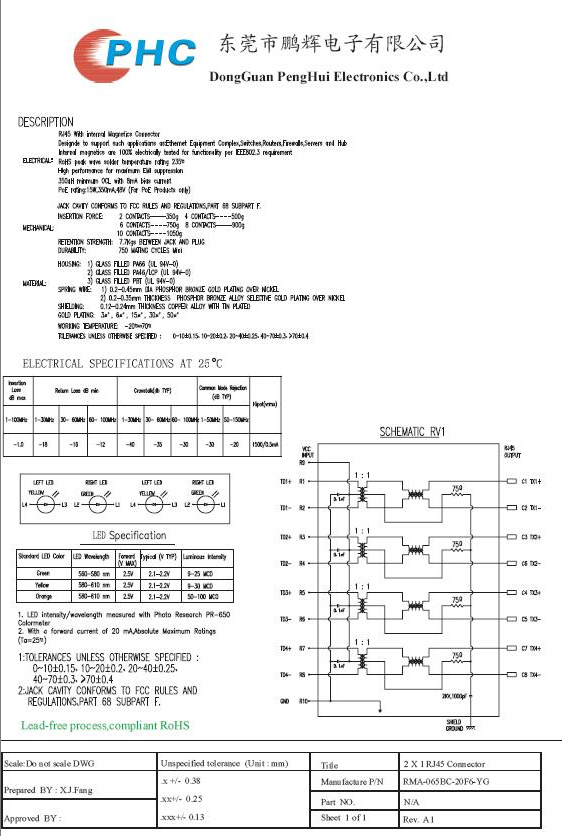

Drawing
RJ45 Ethernet Jack , RJ45 Jack 2P Filter With LED, RMA-065BC-20F6-YG
